MicroPython-programmable automation boards

These boards are delivered with a custom MicroPython firmware preinstalled, ready to use.
MicroPython is a lean and efficient implementation of the Python 3 programming language that includes a small subset of the Python standard library and is optimized to run on microcontrollers and in constrained environments.

MicroPython enables much faster development cycles compared to traditional C/C++, while still providing real-time capability.

For more information see our products documentation

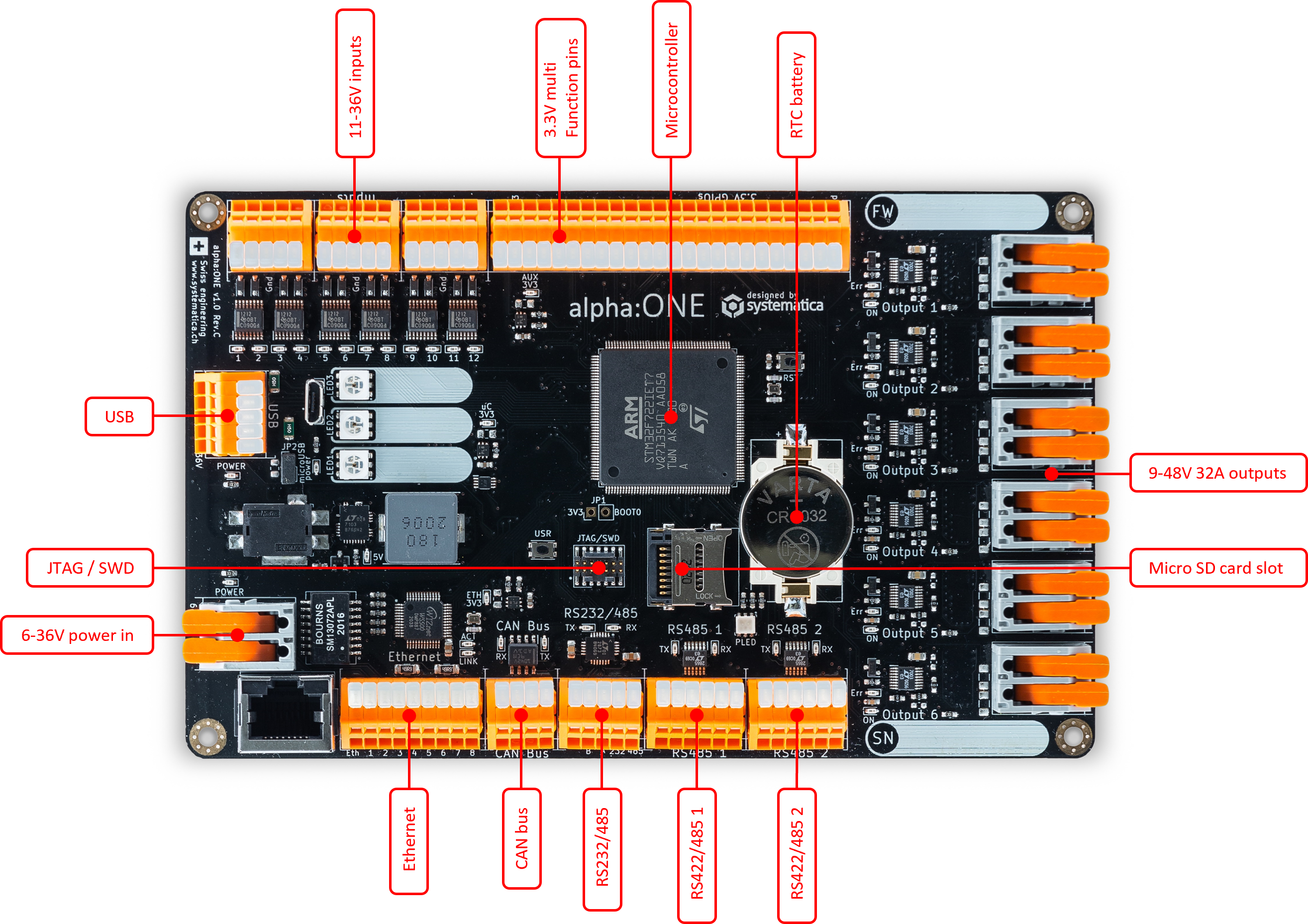

alpha:ONE

alpha:ONE is an industrial multipurpose 32bit microcontroller board for real time applications.
Each component has been carefully selected, making this board a piece of high quality industrial hardware.

CHF 799

alpha:ONE by systematica GmbH
  • STM32F722 32bit micro-controller
  • 6-36V supply input
  • 12x 24V isolated digital inputs
  • 6x 24V / 32A power outputs
  • 21x 3.3V multi-function pins
    (GPIO/PWM/ADC/DAC/UART/SPI/I2C)
  • 10/100 Mbit Ethernet
  • 1x CAN Bus
  • 1x switchable RS232 or RS485 half-duplex
  • 2x RS422/485 full-duplex
  • microSD card slot (up to 32 Gb)
  • Real time clock with battery backup
  • Euro card 160x100x23mm

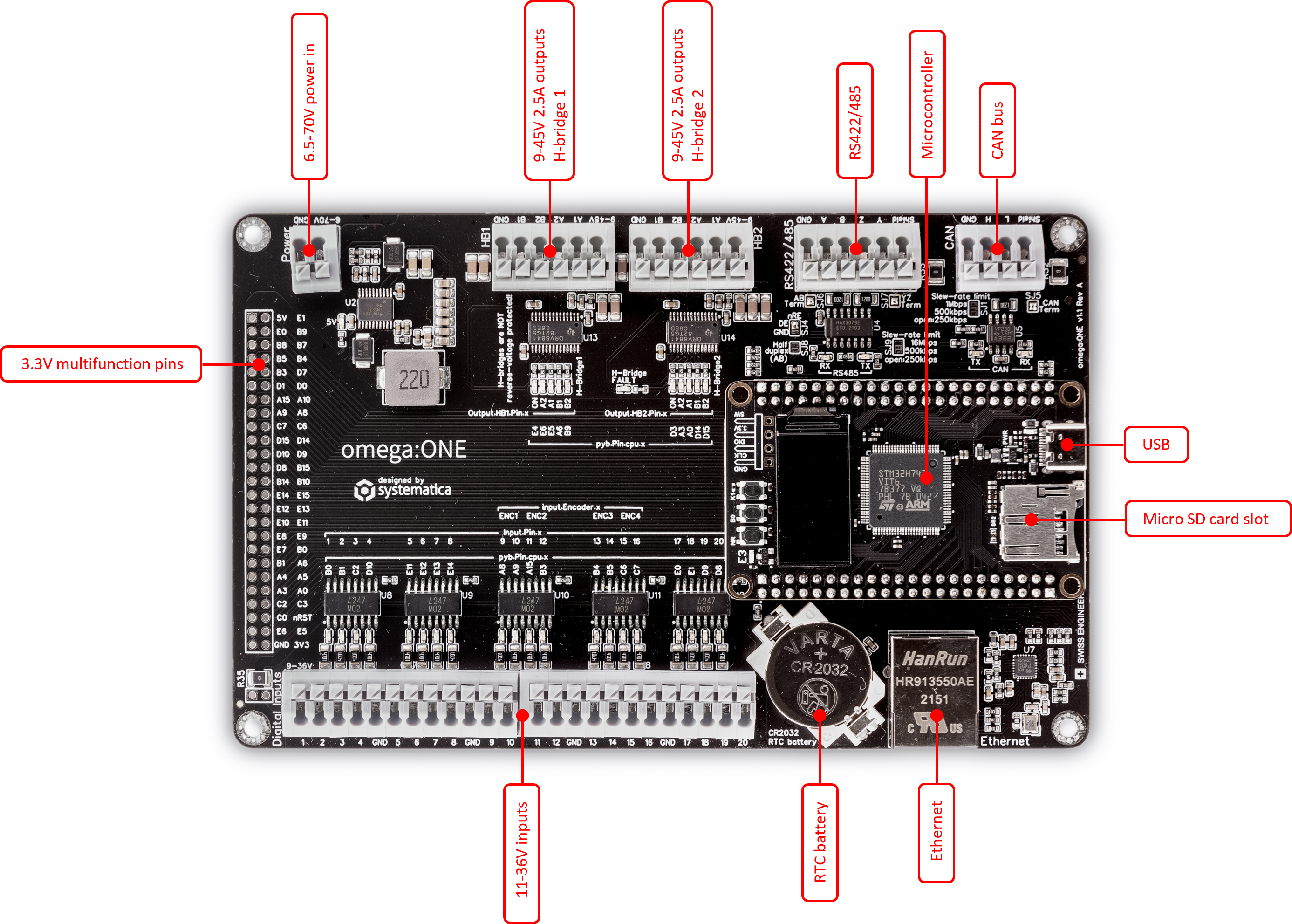

omega:ONE

omega:ONE is an affordable industrial multipurpose 32bit micro-controller board for real time applications.
It offers the best value for money and is ideally suited to get started on industrial MicroPython applications development.

CHF 222

omega:ONE by systematica GmbH
  • STM32H743 32bit microcontroller
  • 7-70V supply input
  • 20x 24V isolated digital inputs
  • 4x 24V / 2.5A H-Bridge outputs
  • 46x shared 3.3V multi-function pins
    (GPIO/PWM/ADC/DAC/UART/SPI/I2C)
  • 10/100 Mbit Ethernet
  • 1x CAN Bus
  • 1x RS422/485 half- or full-duplex
  • microSD card slot (up to 32 Gb)
  • Real time clock with battery backup
  • Euro card 160x100x23mm

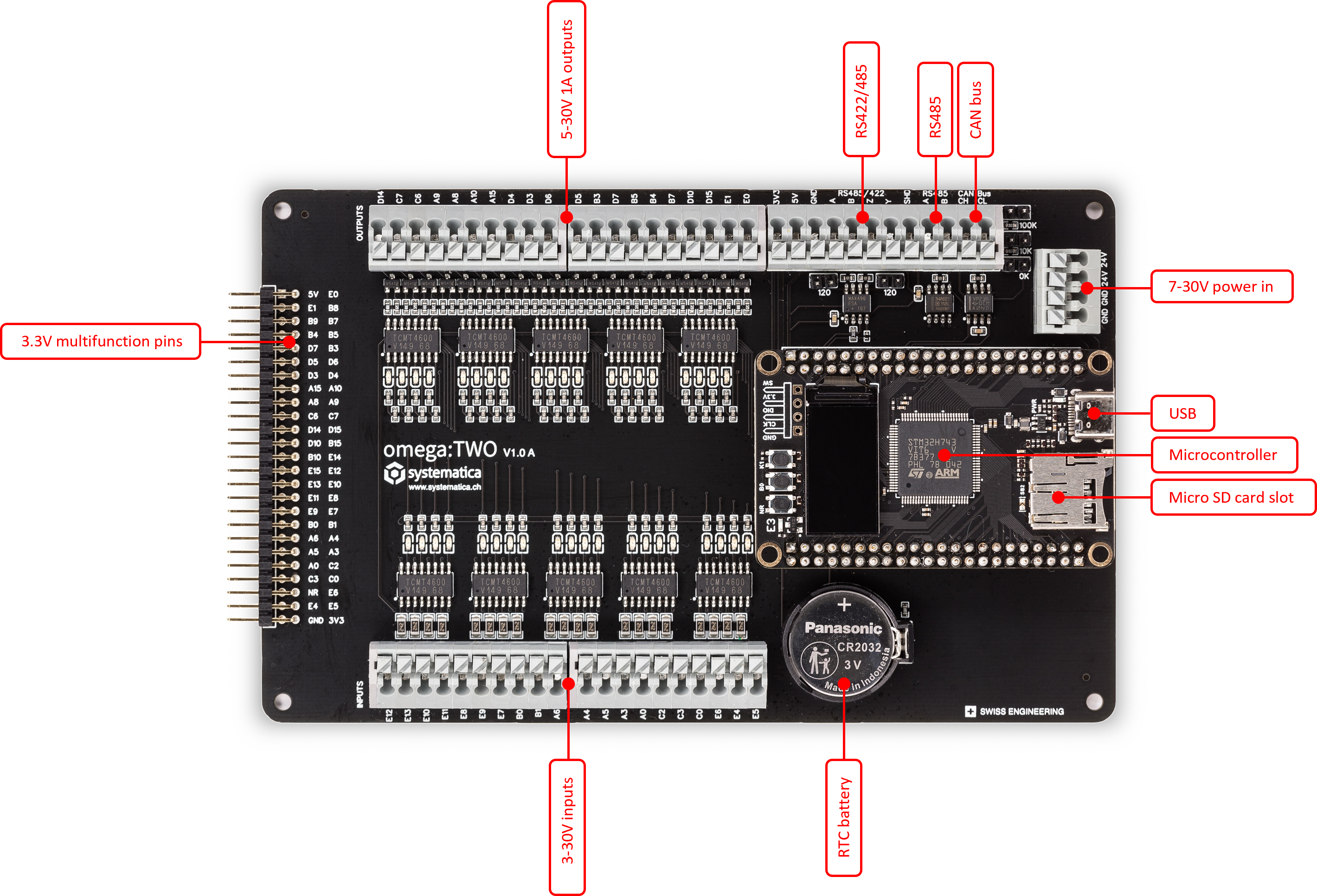

omega:TWO

omega:TWO is an affordable industrial multipurpose 32bit micro-controller board for real time applications.
It offers very high value for money and with is ideally suited for signal and systems simulators, thanks to the high count of digital IOs.

CHF 222

omega:TWO by systematica GmbH
  • STM32H743 32bit microcontroller
  • 7-30V supply input
  • 20x 24V isolated digital inputs
  • 20x 24V digital outputs
  • 46x shared 3.3V multi-function pins
    (GPIO/PWM/ADC/DAC/UART/SPI/I2C)
  • 1x CAN Bus
  • 1x RS422/485 half- or full-duplex
  • microSD card slot (up to 32 Gb)
  • Real time clock with battery backup
  • Euro card 160x100x23mm
