omega:TWO

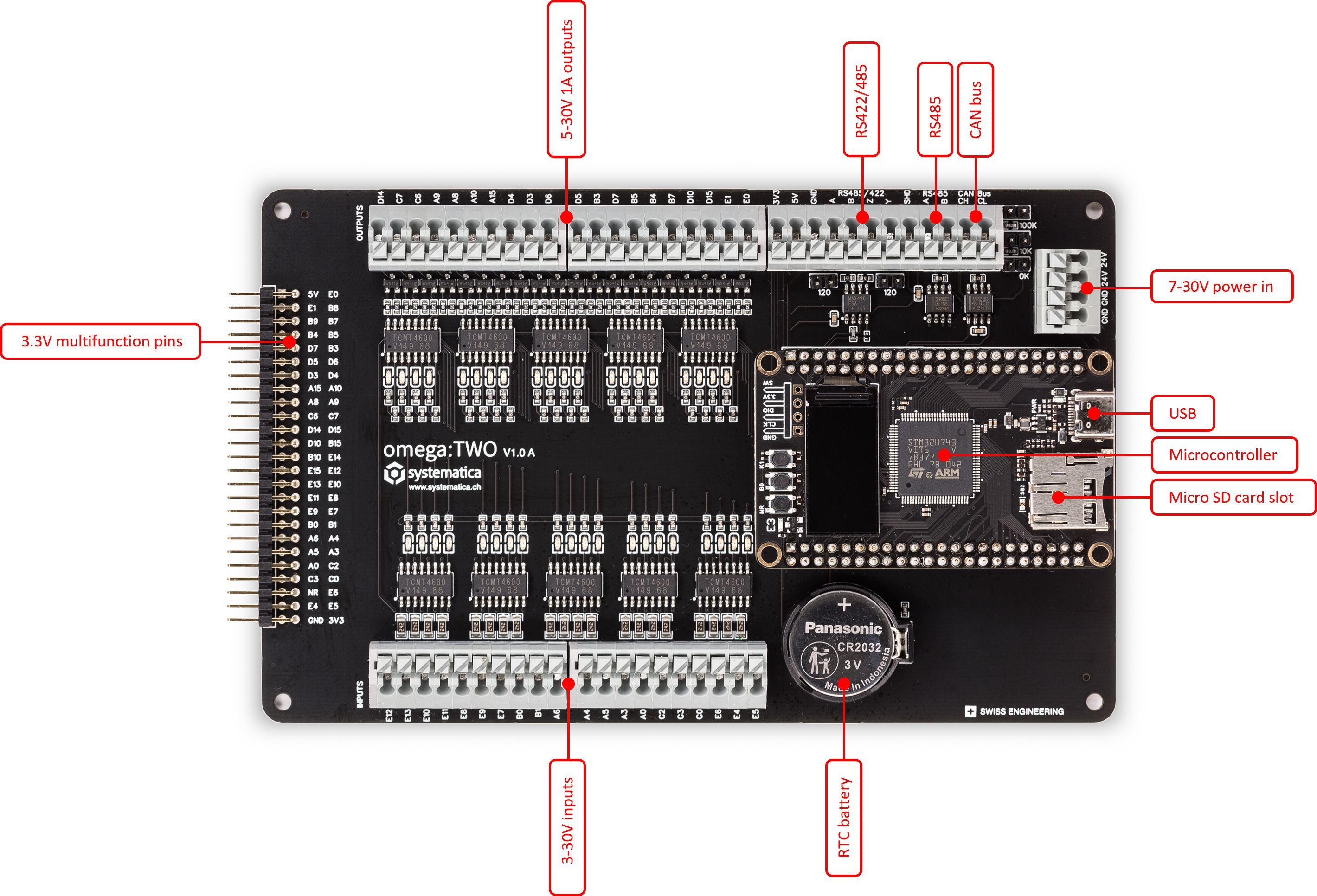

Board overview
omega:TWO combines industrial hardware with the ease and speed of programming of MicroPython. This allows engineers to implement prototypes and products in a fraction of the time required for traditional C/C++ based development.
Key features:
Runs MicroPython out of the box
Provides common industrial communication interfaces, such as Can Bus and RS422/RS485
Twenty 12/24V opto-isolated digital inputs
Twenty 12/24V outputs with up to TBD A peak output capability (high-side switches)
A microSD card slot to store large amounts of data, such as for extensive datalogging
A battery-backed real time clock keeps track of the datetime also after power cycles
Wide supply input voltage range of 6V to 30V
The board can also be supplied directly through the USB-C connector for ease of use while developing
Firmware updates are possible
omega:TWO is suitable for a variety of industrial and research applications, such as:
Programmable Logic Controller
Rapid prototyping
Control systems for test setups
Signal/subsystem simulators
Data logging
Specifications
Technical specifications:
STM32H743VIT6 32Bit microcontroller
Cortex M7 CPU running at 400 MHz
2048 KB internal flash ROM
1024 KB internal RAM
8 MB external QSPI flash
6-30V power supply input
20x 9-36V opto-isolated digital inputs
20x 9-36V TBD A peak / TBD A rms power outputs
46x 3.3V multifunction pins (GPIO/PWM/ADC/DAC/UART/SPI/I2C), partly shared with other resources
microSD card slot (up to 32 Gb)
Real time clock with battery backup
USB-C inteface (and 5V supply input)
1x CAN Bus
1x RS422/485 full-duplex
1x RS485 half-duplex
Mechanical specifications:
Size: Euro card 160x100x23mm
Weight: 120g
Pinout
Downloads
omegatwo_flyer.pdfomegatwo_pinout.pdfomegatwo_minimalDetail.stp
